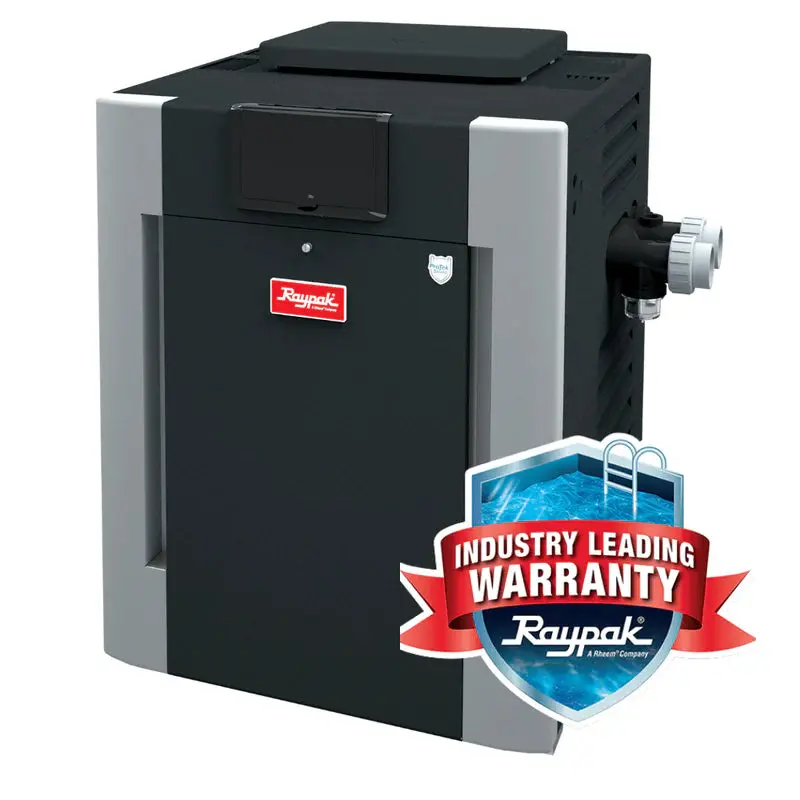

The Raypak 017709 207A Low NOx Digital Natural Gas Heater is a 199,500 BTUH gas fired pool and spa heater designed for low emission performance. This model features bronze ASME headers and a cupronickel fin tube heat exchanger for enhanced durability in demanding water conditions. Equipped with digital electronic ignition and integrated safety controls, it is engineered for residential or light commercial installations requiring Low NOx compliance.
Key Features
ā¢ 199,500 BTUH natural gas input designed for pool and spa heating applications.
ā¢ Low NOx combustion system with blower assisted gas valve for clean and efficient burn performance.
ā¢ Bronze ASME inlet and outlet headers provide structural durability and commercial code strength.
ā¢ Cupronickel fin tube heat exchanger enhances resistance to corrosion and aggressive water chemistry.
ā¢ Digital control interface with microprocessor thermostat for precise temperature management.
ā¢ 2 inch water connections and 3/4 inch NPT gas inlet for standard plumbing integration.
ā¢ Operates on 120V or 240V single phase power with 6 amp draw at 120V and 3 amp draw at 240V.
ā¢ Equipped with integrated high limits, roll out protection, and pressure switch safety systems.
Product Overview
The Raypak 017709 207A Low NOx Digital Natural Gas Heater is engineered to deliver reliable heating performance while meeting strict emission standards. Rated at 199,500 BTUH input, this unit incorporates a blower assisted Low NOx combustion design that maintains proper air fuel mixture and reduces nitrogen oxide output. The bronze ASME headers provide added strength for code compliant installations, while the cupronickel heat exchanger offers enhanced durability in environments with higher mineral or salt content.
Digital controls allow accurate selection of pool or spa temperature, with factory temperature ranges typically set from 50Ā°F to 104Ā°F. The heater includes built-in safety components such as high limit switches, manual reset roll out protection, and a water pressure switch to ensure proper operation. Designed for indoor or outdoor installation with approved venting configurations, the 207A Low NOx model supports dependable, long term performance in residential and regulated applications.
Frequently Asked Questions (FAQ)
Q: What is the Raypak 017709 207A heater used for?
A: The Raypak 017709 207A is a 199,500 BTU natural gas heater designed to efficiently heat residential pools and spas.
Q: What size pool is the Raypak 017709 207A best for?
A: This heater is ideal for small to medium-sized pools and spas, offering reliable heating performance without oversizing your system.
Q: Is the Raypak 017709 207A worth it?
A: Yes. It is a durable and efficient heater that provides reliable heating, Low NOx compliance, and long-term performance for residential pool owners.
Q: Is the Raypak 017709 allowed in California (Low NOx compliant)?
A: Yes. This model is Low NOx compliant and designed to meet emissions regulations required in California and other restricted regions.
Q: Can the Raypak 017709 207A replace my existing pool heater?
A: Yes. It can replace many older pool heaters, but compatibility will depend on your existing gas line, plumbing connections, and venting setup.
Q: Is the Raypak 017709 suitable for saltwater pools?
A: Yes. The cupronickel heat exchanger offers enhanced resistance to corrosion, making it suitable for saltwater and chemically treated pools.
Q: What type of gas does the Raypak 017709 use?
A: This model is designed for natural gas. A propane version is available under a different model number if needed.
Q: What voltage does the Raypak 017709 heater require?
A: The unit operates on 120V or 240V single-phase power, allowing flexibility for different installation setups.
Q: When should I choose the Raypak 207A instead of larger models like 267A or 337A?
A: The 207A is best for smaller pools or applications where lower BTU output is sufficient, offering better efficiency and lower operating costs compared to larger units.
Q: Can the Raypak 017709 be installed indoors or outdoors?
A: Yes. This heater is designed for both indoor and outdoor installation when installed with proper venting and according to manufacturer guidelines.
